Checkout Page Design Considerations

Flow Design

Out of the box, we aimed to provide a flexible checkout UX that works with most Payment Gateways. Of course, you can design your own checkout page, however the Payment Gateway that you integrate with will determine how your checkout page is best laid out and may lead to some technical compromise.

For example, some gateways require that you first pass in a billing address BEFORE you can create a secure credit card form. You can accomplish this with Javascript, however does your site need to support Javascript disabled? These are some of the technical compromises and questions that you and your business needs to determine when designing your custom flow. Other gateways allow you to POST the billing address along with the credit card information directly to the gateway. Some gateways allow you to do both.

With that in mind, we designed the checkout page to gather data in three distinct, but flexible stages: the Shipping, Payment, and Review stages.

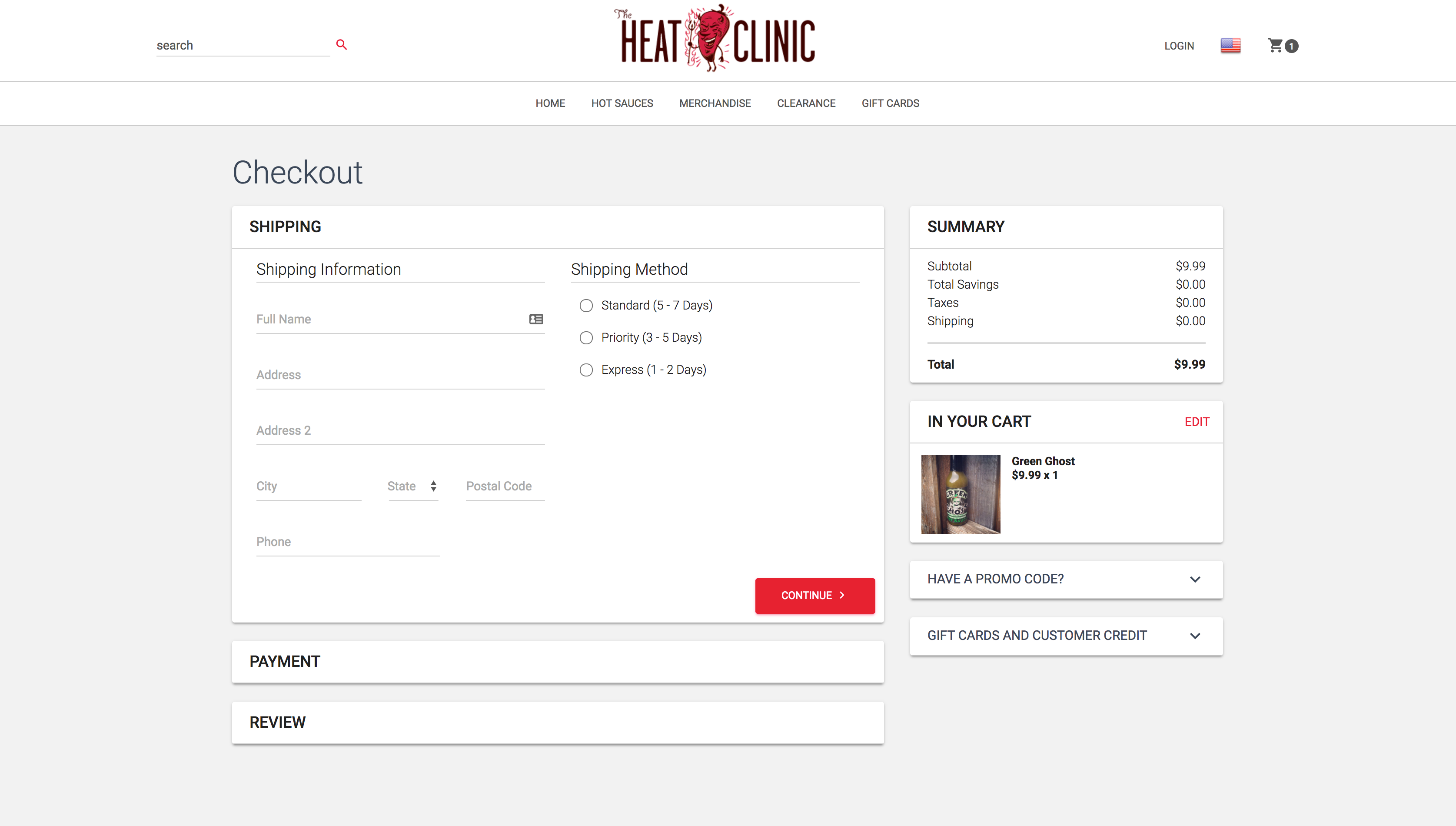

Shipping Stage

The Shipping stage simply collects the shipping address and delivery method (i.e. Ground, Priority, or Express). Note, that whenever they select a new delivery option, the price of their order may change. If the customer is logged in, they also have the opportunity to select one of their saved addresses.

Payment Stage

The Payment stage can be a bit more complex, based on your supported Payment Gateway(s). In our design, we include a credit card processing gateway, PayPal, and COD (Collect On Delivery) as the available payment methods.

For the credit card payment method, we include support for saved payments. If your Payment Gateway supports the saving of a credit card and the customer has one (or several) on file, then they can simply select one and move on to the review stage. On the other hand, if the customer does not have a saved payment, then they are given a payment info form which includes their billing address and credit card data. Based on your Payment Gateway, you may submit some, or all, of the data provided in this stage. For our out-of-box design, we decided to collect the billing address in the payment stage, prior to tokenizing and sending the credit card data in the review stage.

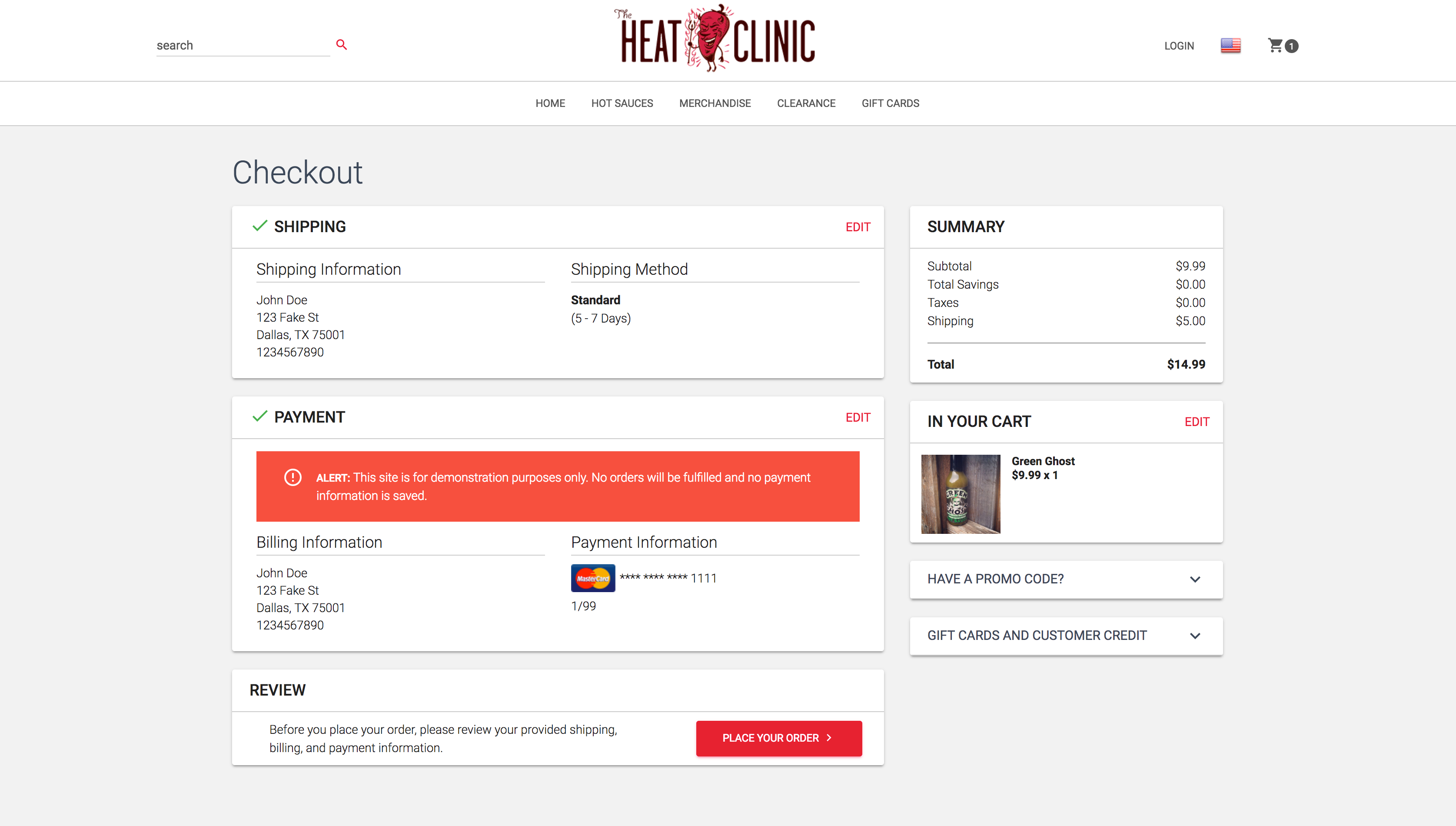

Review Stage

The Review stage is exactly what you would think. It gives you the ability to view all of your provided information, jump to any previous stage to make edits, or simply finalize your checkout. Once they hit the final submit, their Credit Card information is tokenized and POST'ed to the Payment Gateway for processing along with any other order information that is specific for that gateway.

Anonymous vs Logged In Customers

If an anonymous customer enters the checkout flow, they are given a prompt to either login or continue as a guest.

If the customer is logged in, they then gain access to using saved addresses and payments which can drastically simplify their experience.

Promo Codes and Gift Cards/Customer Credit

Throughout the entirety of the checkout flow, the customer has the ability to add Promo Codes or any supplemental payment methods (gift cards/customer credit) using the prompts in the right column.

Thymeleaf Credit Card Form For Transparent Redirect Checkouts

We've aimed to make the integrations with Payment Gateways seamless and transparent. We've also aimed to lessen any PCI-compliance burdens when dealing with Credit Card information. With that in mind, most of the integrations with the Payment Gateways that we provide offer a "Transparent Redirect" or "Direct Post" form of transaction communication (both terms are synonymous) where Credit Card information is sent directly to the Gateway bypassing your web servers.

We provide a Thymeleaf processor that renders the Credit Card form based on the payment integration you choose. It will change the POST action to the correct endpoint as well as add any hidden fields to the form that your particular payment integration may need in a transaction request.

Handling Alternative Checkout Flows and Design Considerations

Some payment gateways like "PayPal Express Checkout" offer alternative checkout flows that differ from a regular one page checkout. PayPal Express Checkout requires that you place the PayPal button on your Cart Page as well as offer it as a form of payment as the last step of your process.

When you place the PayPal Express Checkout button on your cart page. The user will be redirected to PayPal's site to enter their details. After completing this they will then be redirected back to your site as the order has not yet been completed. They have not yet entered their Shipping Address or picked their Delivery Method.

We provide a Thymeleaf OnePageCheckoutProcessor to help render and make business decisions on when to draw the different states that are required for the checkout page. Our OnePageCheckoutProcessor will handle this particular case where there is an OrderPayment on the order that is what we called UNCONFIRMED. Since there is an Order Payment that is unconfirmed from a THIRD_PARTY_ACCOUNT, our checkout page won't bother asking for a billing address and will only allow you to complete checkout using that payment that's in process.

Here is a wireframe depicting how the UI may look like if integrating with a gateway like PayPal Express Checkout:

Another important consideration is that the different sections may or may not be relevant based on your current order state. For example, if your order contains non-shippable items (e.g. digital downloads) it does't make sense to ask for shipping information. Or, if you have applied a payment method like (PayPal Express Checkout), it doesn't make sense to ask for a billing address.

Here is how the UI may look like if the order contains non-shippable fulfillment groups:

So, if you are integrating with a Payment Gateway that require alternative checkout flows, be mindful of the different payment states that can occur and how your UI will best handle it.

Completing Checkout

Once the customer clicks the final submit, the Payment Gateway will process their credit card information and send a response back with the transaction results. All of the gateway integrations we provide will have built in default endpoints that will handle parsing the results and proceeding with checkout.

Once the results are determined, and OrderPayment is created for that Gateway and applied to the order, checkoutService.performCheckout() (the Broadleaf Checkout Workflow) is invoked. Next, see what invoking the checkout workflow entails in our Checkout doc.
